Vinncom! Welcome! Victory in communication
5 Years
| Ask Lasest Price | |
| Brand Name : | Vinncom |
| Model Number : | VN-AT-3.8G-30W-ONx |
| Certification : | ROHS ISO9000 |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, T/T |
| Supply Ability : | 300pcs per day |

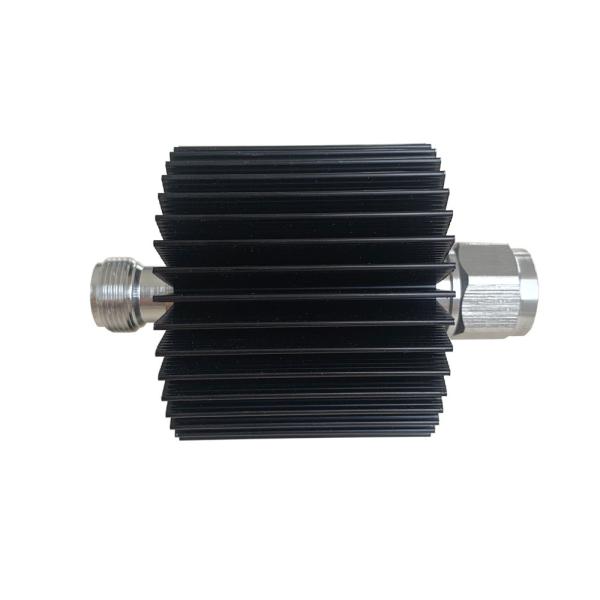

DC-3.8GHz 30 Watts N Male-N Female 3~30dB RF Coaxial Attenuators
RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.
Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.
| Part Number | VN-AT-3.8G-30W-ONX | ||||||
| Operating Frequency ( MHz ) | DC-3800 | ||||||
| Impedance ( Ohm ) | 50 | ||||||
| VSWR | ≤1.25 | ||||||
| Application | Indoor & Outdoor | ||||||
| Degree of Protection | IP65 | ||||||
| Handling Power (Watt, max) | 30 | ||||||
| Interface | N Male - N Female | ||||||
| Operating Temperature ( ℃ ) | -40 ~ + 80 | ||||||
| Attenuation(dB) | 3 | 5 | 6 | 10 | 15 | 20 | 30 |
| Attenuation Tolerance(dB) | ±0.5 | ±0.5 | ±0.6 | ±0.8 | ±1 | ±1.5 | ±1.8 |
| Dimension (mm)(L×W×H, excl connector) | 50×Φ60 | ||||||
| Net Weight (g) | 250± 20 | ||||||
| Packing Dimensions (mm,L×W×H) | 105 × 65 ×65 | ||||||
| Packing Carton Size (mm,L×W×H) | 350 × 350 × 225 | ||||||
| ROHS Compliance | Yes | ||||||
| Revision | R1 | ||||||
| Date | 31-October-2020 | ||||||
|
|
