| Brand Name : | vinncom |
| Model Number : | VN-AT-3.8G-30W-OPX |
| Price : | USD 6~9 |
| Payment Terms : | L/C, D/A, D/P, T/T |
| Supply Ability : | 500PCS per day |

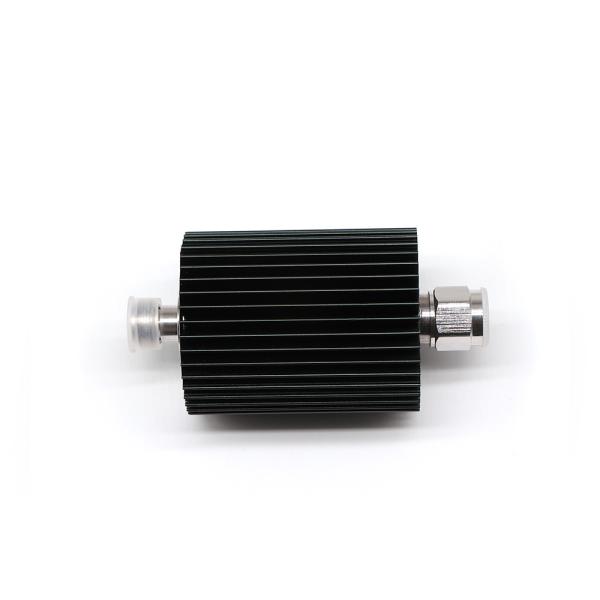

DC-3.8Ghz 30 watts4.3-10 female -4.3-10 male Attenuators Mini Din
RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.
Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.
| Part Number | VN-AT-3.8G-30W-OX |
| Operating Frequency( MHz ) | DC-3800 |
| Impedance( Ohm ) | 50 |
| VSWR | ≤1.25 |
| IM3(dBc @ 2×37dBm) | -120/-130 |
| Application | Indoor & Outdoor |
| Degree of Protection | IP65 |
| Handling Power(Watt, max) | 30 |
| Interface | 4.3-10 Male - 4.3-10 N Female |
| Operating Temperature( ℃ ) | -40 ~ + 80 |
| Connector Material | Brass(Silver plating for Inner Contact and Tri-metal plating for Outer Contact) |
| Body Material | Aluminum |
| ONX in P/N | ON3 ON6 ON10 ON15 ON20 ON30 |
| Attenuation(dB) | 3 6 10 15 20 30 |
| Attenuation Tolerance(dB) | ±0.5 ±0.5 ±1 ±1.2 ±1.5 ±1.8 |
| Dimensions(mm,L×W×H,excl connector) | 50×Φ60 |
| Net Weight(g) | 240±20 |
| Packing Weight(kg /- pcs) | 7.56/25 |
| Packing Dimensions(mm)(L×W×H) | 170×70×70 |
| Packing Carton Size(mm)(L×W×H) | 370×370×180 |
|
|
