| Brand Name : | Vinncom |
| Model Number : | VN-HC2x2-0727-ON |
| Certification : | ROHS ISO9000 |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T |
| Supply Ability : | 500pcs per day |
698-2700MHZ N Female Low PIM -160dbc 3dB Hybrid Coupler Combiner DAS
| Part Number | VN-HC2x2-0727-ON |
| Operating Frequency ( MHz ) | 698-2700 |
| Impedance ( Ohm ) | 50 |
| VSWR | ≤1.20 |
| Coupling (dB) | 3.0±0.8 |
| Insertion Loss (dB) | 3.6 |
| Isolation (dB) | ≥25 |
| IM3 (dBc @ 2×43dBm) | -140 / -150 / -155 / -160 |
| Application | Indoor & Outdoor |
| Degree of Protection | IP65 |
| Operating Temperature ( ℃ ) | -40 ~ + 80 |
| Interface | N Female |
| Handling Power (Watt, max) | 300 |
| Peak Power (Watt, max) | 1200 |

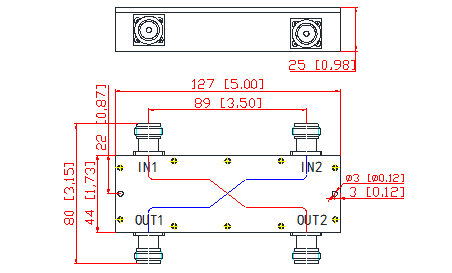

| Dimension (mm)(L×W×H, excl connector) | 127 × 44 × 25 |
| Net Weight (g) | 385 ± 20 |
| Packing Dimensions (mm,L×W×H) | 165 × 87 ×35 |
| Packing Carton Size (mm,L×W×H) | 460 × 350 × 195 |
| ROHS Compliance | Yes |
| Revision | R1 |
| Date | 28-Sept -2020 |
|
|
