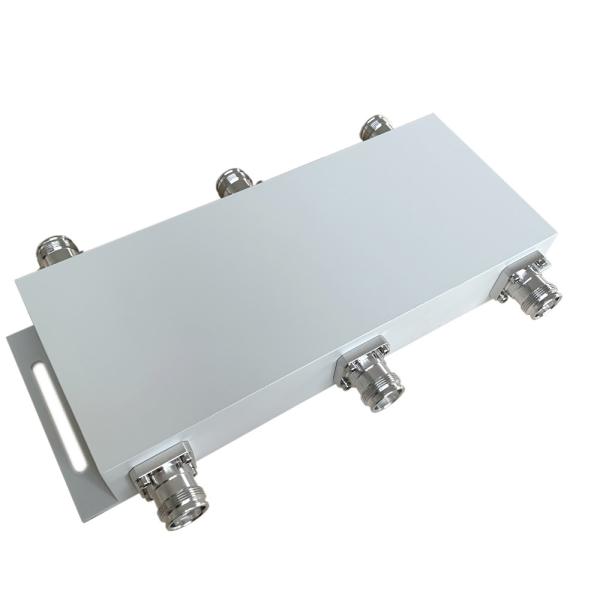

698-3800MHz 4.3-10 Mini DIN Female Low PIM 3 In 3 Out 3x3 Hybrid Coupler Combiner For DAS IBS

The hybrid combiner is used to split and combiner RF signals. It is related to the 3 dB hybrid which is based on PCB transmission lines or dielectric 3db hybrid , and is most commonly used as combiner in distributed antenna system(DAS).

Vinncom has many types of hybrid combiner for different frequency ,from 130MHZ to 6000MHZ ,for example ,2in1out ,3in 3out ,and 4in 4out for different usage and customized products also welcomed .

VN-HC3X3-0738-OP.pdf

Part Number	VN-HC3x3-0738-OP
Operating Frequency ( MHz )	698-3800
Impedance ( Ohm )	50
VSWR	≤1.3
Insertion Loss (dB)	5.1±1
Isolation (dB)	≥25
IM3 (dBc @ 2×43dBm)	-155 / -160
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	500
Peak Power (Watt, max)	1500

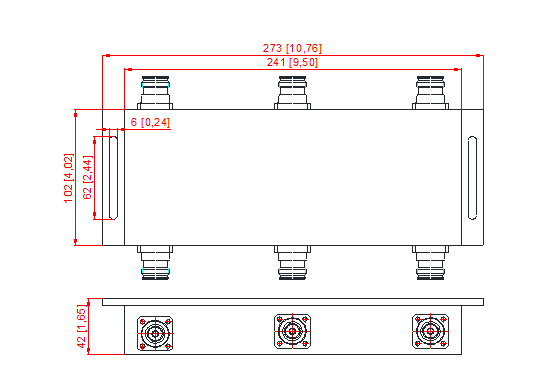

Dimension (mm)(L×W×H, excl connector)	241 × 102 × 40
Net Weight (g)	2200 ± 20
Packing Dimensions (mm,L×W×H)	340 × 225 × 85
Packing Carton Size (mm,L×W×H)	475 × 350 × 285
ROHS Compliance	Yes
Revision	R1
Date	28- Nov -2020
