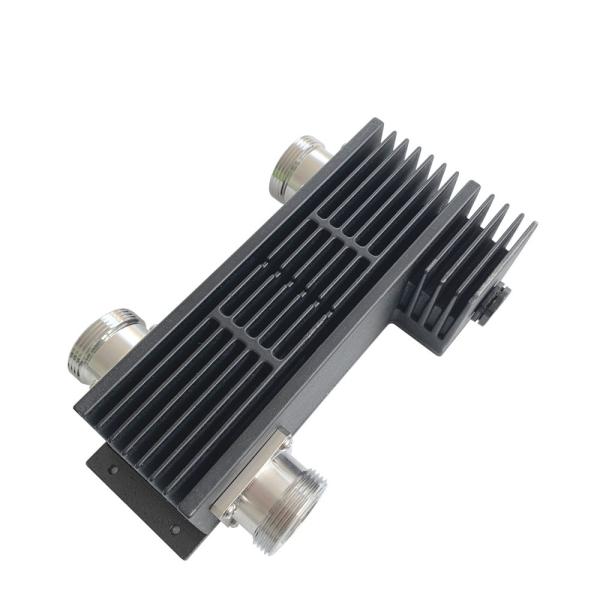

698-2700/3800MHz DIN Female Low PIM 3dB Hybrid Coupler Combiner For DAS IBS

The hybrid combiner is used to split and combiner RF signals. It is related to the 3 dB hybrid which is based on PCB transmission lines or dielectric 3db hybrid , and is most commonly used as combiner in distributed antenna system(DAS).

Vinncom has many types of hybrid combiner for different frequency ,from 130MHZ to 6000MHZ ,for example ,2in1out ,3in 3out ,and 4in 4out for different usage and customized products also welcomed .

VN-HC2x1-0738-OD.pdf

Part Number	VN-HC2x1-0738-OD
Operating Frequency ( MHz )	700-3800
Impedance ( Ohm )	50
VSWR	1.25
Coupling (dB)	3
Insertion Loss (dB)	≤0.8(splitting loss not including)
Isolation (dB)	20
IM3 (dBc @ 2×43dBm)	-130
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	DIN Female
Handling Power (Watt, max)	200
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	145.2X71X46
Net Weight (g)	890
Packing Dimensions (mm,L×W×H)	175X110X50
Packing Carton Size (mm,L×W×H)	570X360X120
ROHS Compliance	Yes
Revision	R1
Date	13-November -2020
