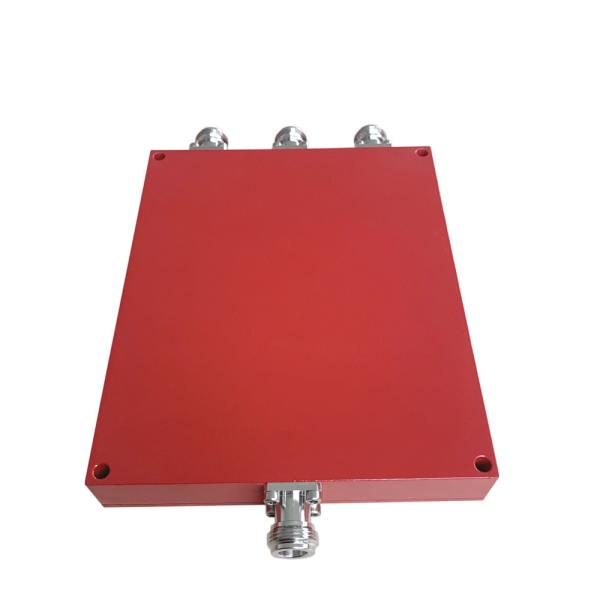

138-960MHz N Female 3 Way Wilkinson Power Divider For Public Safety DAS IBS

Wilkinson Power Divider (WPD) is a specific class of power divider circuit that can achieve isolation between the output ports while maintaining a matched condition on all ports. The Wilkinson design can also be used as a power combiner, the high degree of isolation between the output ports prevents cross talk between the individual channels which can be easily fabricated as quarter wave lines on circult. WPD also can be unequally divided the input power based on different usage ,.

Vinncom WPD has widely frequency range to 40GHZ ,and for sub-6Ghz

Customized products also are welcomed.

Part Number	VN-PD-013096-ON3
Operating Frequency ( MHz )	138-960
Impedance ( Ohm )	50
VSWR	≤1.3
Split Loss (dB)	≤5.8
Isolation (dB)	≥18
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	50(2w as combiner)
Peak Power (Watt, max)	200
Dimension (mm)(L×W×H, excl connector)	155 × 127.7× 21
Net Weight (g)	830± 20
Packing Dimensions (mm,L×W×H)	210 × 170 × 65
Packing Carton Size (mm,L×W×H)	530 × 440 × 80
ROHS Compliance	Yes
Revision	R1
Date	07-November-2020

Vinncom company is located in Hefei China with more than 16,000 square meters manufacturer center（Final construction will be 35000 square meters) . Our products include power splitter、coupler、 3dB hybrid、dummy load、RF attenuator、 combiner、waveguide components、etc. We have senior R&D team who are specialized in the research of new components for market demands based on the designs of micro-strip、 waveguide、multilayers and thin film technology. We are supplying many big players all over the world and products are widely used in DAS 、Navigation、telecom systems、sensor systems and fibers,etc.We believe that co-operation is based on multi-win and sharing ,and we are looking forward to establishing good relationship with you all over the world.
