100-1000MHz 35dB 300W 0.1-1GHz DIN Female BI-Directional Coupler

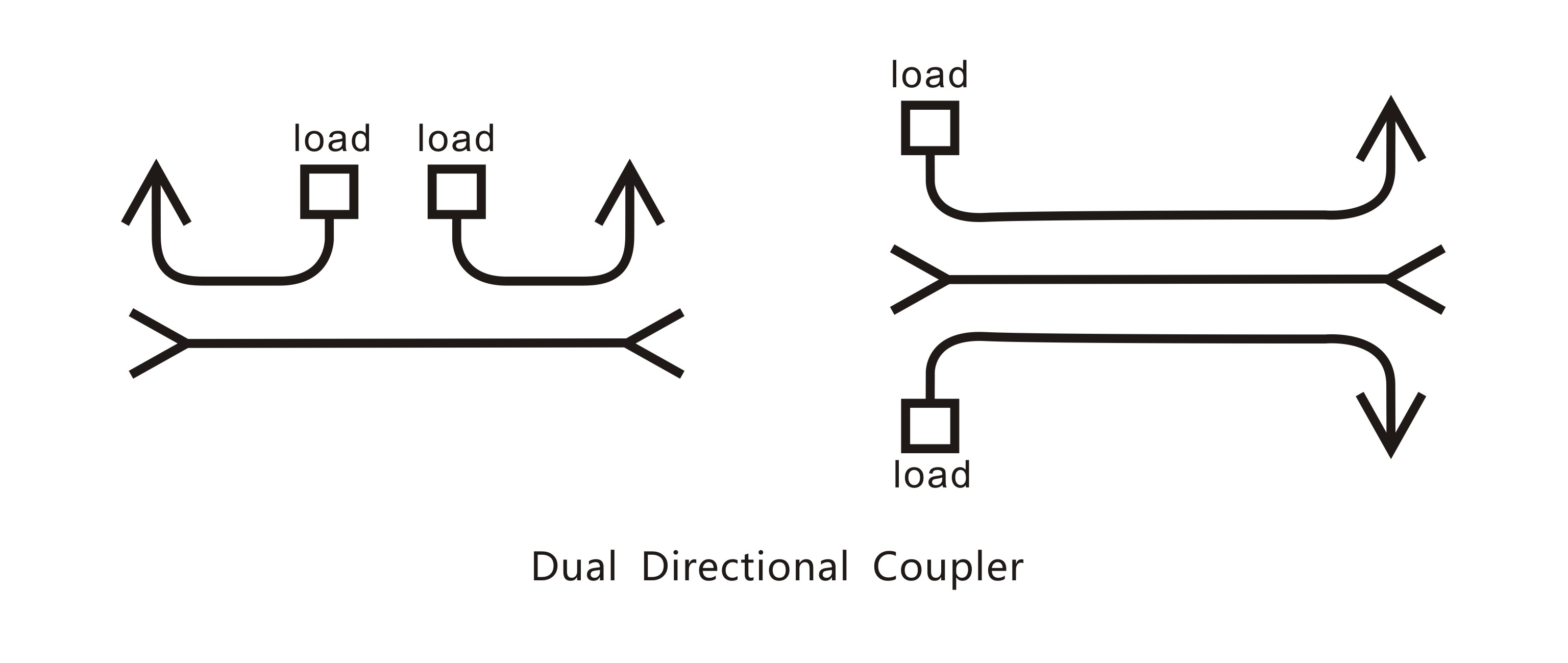

BI-Directional couplers are a passive device used mostly in the field of radio technology. An essential feature of BI-directional couplers is with all four coupled ports accessible. In this case the two ports can be terminated with 50 ohm loads, and the outer ports can be connected to potentially mismatched loads without affecting the directivity or output at the other coupled port.

Vinncom BI-directional coupler are based on different design ,such as micro-stripline,air-dielectric ,thin film ,waveguide etc.

BI-Directional couplers have many applications. These include providing a signal sample for measurement or monitoring.

VN-BDC-0110-300W-OD35.pdf

Vinncom company is located in Hefei China with more than 16,000 square meters manufacturer center（Final construction will be 35000 square meters) . Our products include power splitter、coupler、 3dB hybrid、dummy load、RF attenuator、 combiner、waveguide components、etc. We have senior R&D team who are specialized in the research of new components for market demands based on the designs of micro-strip、 waveguide、multilayers and thin film technology. We are supplying many big players all over the world and products are widely used in DAS 、Navigation、telecom systems、sensor systems and fibers,etc.We believe that co-operation is based on multi-win and sharing ,and we are looking forward to establishing good relationship with you all over the world.

Some of our testing instruments
