550-3800MHz 600-4000MHz 4.3-10 Mini Din Female -153dbc -163dbc Low PIM 2IN 1OUT Hybrid Combiner
The hybrid combiner is used to split and combiner RF signals. It is related to the 3 dB hybrid which is based on PCB transmission lines or dielectric 3db hybrid , and is most commonly used as combiner in distributed antenna system(DAS).
Vinncom has many types of hybrid combiner for different frequency ,from 130MHZ to 6000MHZ ,for example ,2in1out ,3in 3out ,and 4in 4out for different usage and customized products also welcomed .
| Part Number | VN-LPHC2x1-0640-OP |
| Operating Frequency ( MHz ) | 600-4000 |
| Impedance ( Ohm ) | 50 |
| VSWR | 1.25 |
| Coupling (dB) | 3 |
| Insertion Loss (dB) | ≤0.9(splitting loss not including) |
| Isolation (dB) | 23 |
| IM3 (dBc @ 2×43dBm) | -160 |
| Application | Indoor & Outdoor |
| Degree of Protection | IP65 |
| Operating Temperature ( ℃ ) | -40 ~ + 80 |
| Interface | 4.3-10 Female |
| Handling Power (Watt, max) | 100 |
| Peak Power (Watt, max) | 1000 |

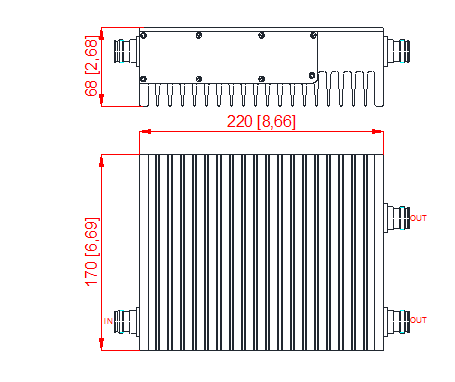

| Dimension (mm)(L×W×H, excl connector) | 220X170X68 |
| ROHS Compliance | Yes |
| Revision | R1 |
| Date | 30-Dec-2020 |
|
|
