| Brand Name : | Vinncom |
| Model Number : | VN-PS-0740-ONx |
| Certification : | RoHS/ISO9000 |

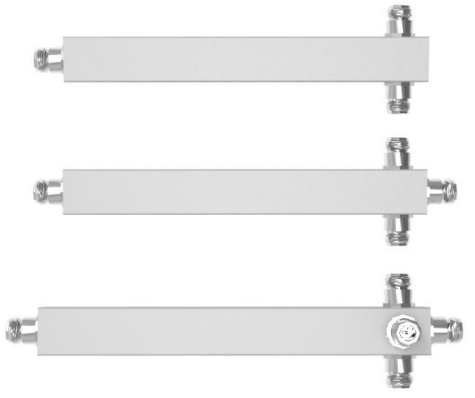

Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3rd PIM
Vinncom reactive power splitters has widely frequency up to be 8GHZ,small sizes,and low PIM( -165dbc ).and welcome customized products design.
| Part Number | VN-PS-0740-ONx | ||
| Operating Frequency ( MHz ) | 700-4000 | ||
| Impedance ( Ohm ) | 50 | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.25 |
| Split Loss (dB) | ≤3.3 | ≤5.1 | ≤6.5 |
| IM3 (dBc @ 2×43dBm) | -140 / -150 / -155 / -160 | ||
| Application | Indoor & Outdoor | ||
| Degree of Protection | IP65 | ||
| Operating Temperature ( ℃ ) | -40 ~ + 80 | ||
| Interface | N Female | ||
| Handling Power (Watt, max) | 300 | ||
| Peak Power (Watt, max) | 1200 | ||

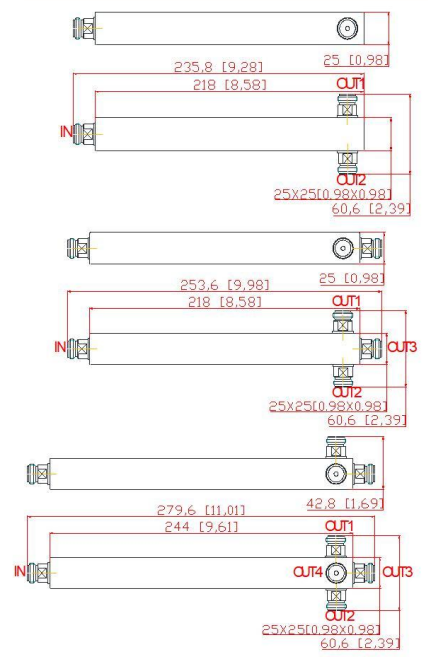

| Dimension (mm)(L×W×H, excl connector) | 218 × 25 × 25 | 218 × 25 × 25 | 244 × 25 × 25 |
| Net Weight (g) | 375± 20 | 405 ± 20 | 470 ± 20 |
| Packing Dimensions (mm,L×W×H) | 280 × 80 × 35 | 280 × 80 × 35 | 320 × 80 × 35 |
| Packing Carton Size (mm,L×W×H) | 580× 420 × 160 | 580× 420 × 160 | 655× 410 × 140 |
| ROHS Compliance | Yes | ||
| Revision | R1 | ||
|
|
