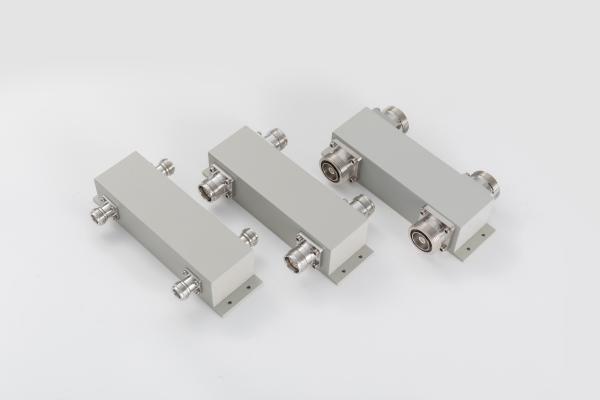

698-3800MHz 2in 2out Hybrid Coupler / 2:2 Combiner 500W Or 300W N Female 4.3-10 Female DIN Female
698-3800MHz 2in 2out Hybrid Coupler / 2:2 Combiner
The hybrid combiner is used to split and combiner RF signals. It is related to the 3 dB hybrid which is based on PCB transmission lines or dielectric 3db hybrid , and is most commonly used as combiner in distributed antenna system(DAS).
| Part Number | VN-HC2x2-0738-OP | ||
| Operating Frequency ( MHz ) | 698-3800 | ||
| Impedance ( Ohm ) | 50 | ||
| VSWR | ≤1.25 | ||
| Coupling (dB) | 3.0±0.9 | ||
| Insertion Loss (dB) | 3.7 | ||
| Isolation (dB) | ≥25 | ||
| IM3 (dBc @ 2×43dBm) | -150 / -160 | ||
| Application | Indoor & Outdoor | ||
| Degree of Protection | IP65 | ||
| Operating Temperature ( ℃ ) | -40 ~ + 80 | ||
| Interface | N Female | 4.3-10 Female | DIN Female |
| Handling Power (Watt, max) | 500(N:300) | ||
| Peak Power (Watt, max) | 1500(N:1200) | ||
| Dimension (mm)(L×W×H, excl connector) | 141 × 44 × 38 | ||
| Net Weight (g) | 615 ± 20 | 685 ± 20 | 880 ± 20 |
| Packing Dimensions (mm,L×W×H) | 170 × 100 × 40 | ||
| Packing Carton Size (mm,L×W×H) | 460 × 350 × 195 | 520× 360 × 110 | 520× 360 × 110 |
| ROHS Compliance | Yes | ||
| Revision | R1 | ||
| Date | 28-Sept -2020 | ||
|
|
