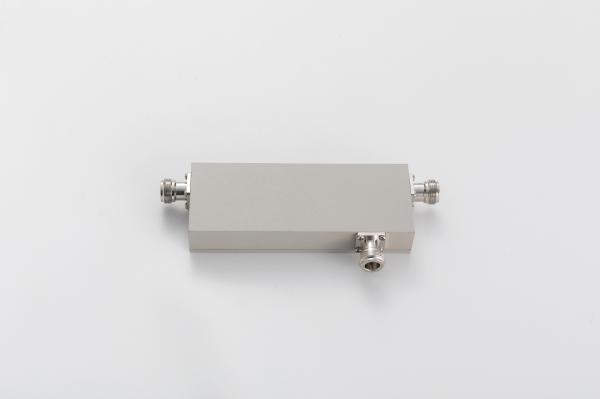

    300W 550-6000MHz Directional Coupler N Female PIM-150/-155/-161/-165

    Ask Lasest Price
    Brand Name : Vinncom
    Model Number : VN-DC-05560
    Certification : RoHS/ISO9000
    Payment Terms : T/T, Western Union
    • Product Details
    • Company Profile

    300W 550-6000MHz Directional Coupler N Female PIM-150/-155/-161/-165

    550-6000MHz Directional Coupler N Female 300W PIM-150/-155/-161/-165 VSWR ≤1.35

    550-6000MHz N Female Directional Coupler VSWR ≤1.35 for DAS and IBS


    Directional couplers are a passive device used mostly in the field of radio technology. They couple a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another radio system or next radio equipment. An essential feature of directional couplers is that they only couple power flowing in one direction. Power entering the output port is coupled to the isolated port but not to the coupled port. A directional coupler designed to split power equally between two ports is called a hybrid coupler, for example ,3dB hybrid coupler.

    VN-DC-05560-ONx-xxx.pdf


    Part NumberVN-DC-05560-ON
    Operating Frequency ( MHz )550-6000
    Impedance ( Ohm )50
    VSWR≤1.35
    Coupling (dB)5 ± 1.46 ± 1.47 ± 1.48 ± 1.410 ± 1.615± 1.620 ± 1.8
    Insertion Loss (dB)≤2.5≤1.8≤1.5≤1.2≤1.1≤0.4≤2.2
    Isolation (dB)≥21≥22≥23≥24≥26≥31≥35
    IM3 (dBc @ 2×43dBm)-150/-155/-161/-165
    ApplicationIndoor/Outdoor
    Degree of ProtectionIP65
    Operating Temperature ( ℃ )-40 ~ + 80
    InterfaceN Female
    Handling Power (Watt, max)300
    Peak Power (Watt, max)1200
    Dimension (mm)(L×W×H, excl connector)127X40X31
    Net Weight (g)450± 5%
    Packing Dimensions (mm,L×W×H)190 × 80 × 45
    Packing Carton Size (mm,L×W×H)430 × 400 × 105
    ROHS ComplianceYes
    RevisionR1
    Date09-November-2020
