| Brand Name : | Vinncom |
| Model Number : | VN-DC-035052-IN |
| Certification : | RoHS/ISO9000 |
| Price : | negotiation |
| Payment Terms : | T/T, Western Union |
| Delivery Time : | 2-4weeks |

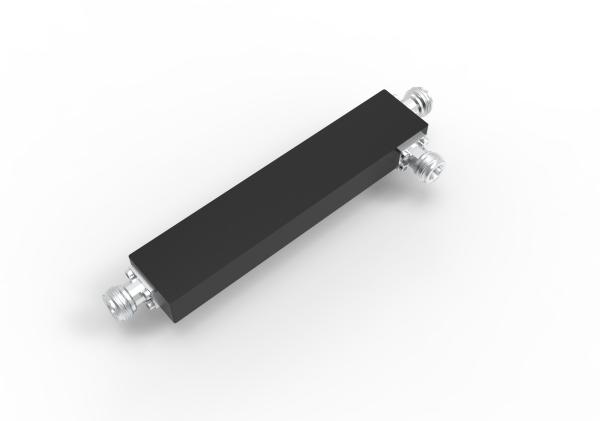

350-520 MHz Directional Coupler N Female PIM -150/-155/-161/-165 VSWR ≤1.2
350-520 MHz N Female Directional Coupler VSWR 1.2 PIM -150/-155/-161/-165 Directional Coupler For IBS DAS And BTS
| Part Number | VN-DC-035052-INx | |||||
| Operating Frequency ( MHz ) | 350-520 | |||||
| Impedance ( Ohm ) | 50 | |||||
| VSWR | ≤1.2 | |||||
| Coupling (dB) | 5 | 6 | 10 | 15 | 20 | 30 |
| Tolerance (dB) | ± 0.8 | ± 0.8 | ± 1.0 | ± 1.0 | ± 1.0 | ± 1.2 |
| Insertion Loss (dB) | ≤2.0 | ≤1.6 | ≤0.7 | ≤0.3 | ≤0.1 | ≤0.04 |
| Isolation (dB) | ≥25 | ≥26 | ≥30 | ≥35 | ≥40 | ≥50 |
| IM3 (dBc @ 2×43dBm) | -150/-155/-161/-165 | |||||
| Application | Indoor | |||||
| Degree of Protection | IP65 | |||||
| Operating Temperature ( ℃ ) | -40 ~ + 80 | |||||
| Interface | N Female | |||||
| Handling Power (Watt, max) | 300 | |||||
| Peak Power (Watt, max) | 1200 | |||||
| Dimension (mm)(L×W×H, excl connector) | 151 × 31× 17 | |||||
| ROHS Compliance | Yes | |||||
| Revision | R1 | |||||
| Date | 13-October-2020 | |||||
Rf passive devices are mainly used in base station construction of
wireless communication system and indoor power distribution system.
Especially in the building of wireless signal distribution and
coverage of a wide range of applications, a variety of. Rf passive
devices are used to connect or distribute RF signals in base
station construction and indoor power distribution projects. Indoor
power distribution system is to connect or branch the signals sent
by the base station through rf passive equipment, and then
distribute them to each coverage point of the antenna through the
feeder, so as to achieve good coverage of c indoor wireless
signals.
|
|
