| Brand Name : | VINNCOM |
| Model Number : | VN-COM-1921-OX |
| Certification : | ISO9000 |
| Price : | negotiation |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 50pcs per day |
| Delivery Time : | 2weeks |

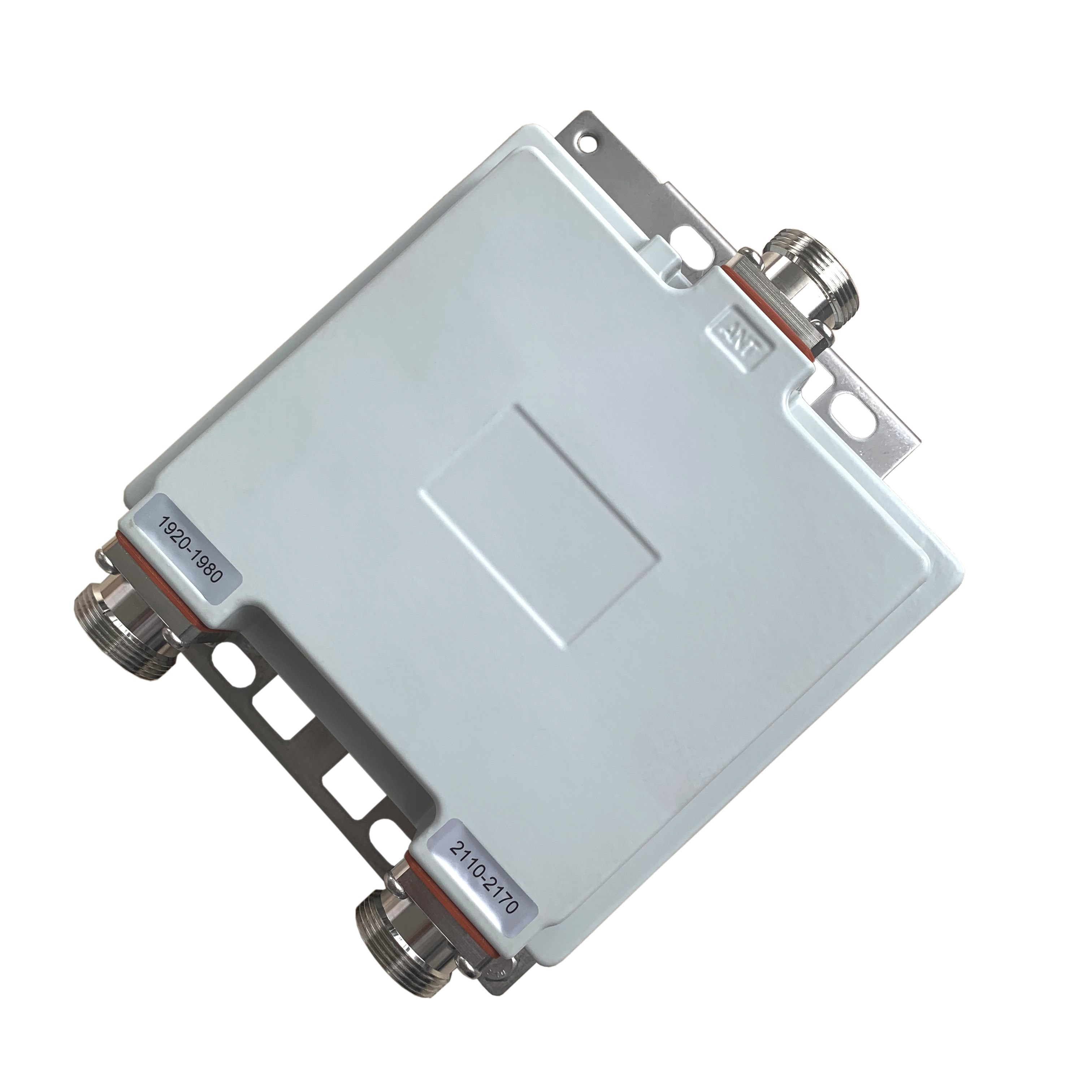

1920-2100MHz Combiner 1920-1980MHz/2110-2170MHz DIN Female Duplexer
| Operating Frequency( MHz ) | 1920-1980 & 2110-2170 |
| Impedance( Ohm ) | 50 |
| Return Loss(dB) | ≥20 |
| Insertion Loss(dB) | ≤0.3 |
| Rejection(dB) | ≥50 |
| IM3 (dBc @ 2×43dBm) | -160 |
| Input Average Power(Watt, max) | 150 |
| Application | Indoor/Outdoor(IP67) |
| DC/AISG | By-pass(max. 2.5A) |
| Lightning Protection | 3KA;10/350us pulse |
| Interface | DIN Female |
| Operating Temperature( ℃) | -20 ~ + 55 |
| Relative Humidity | 0~95% |
| Weight(kg) | 3.0 |
| Dimensions(mm,L×W×H,excl. Connector & BArNaTckets) | 150×169×51 |
If you are interested, please come and make an inquiry
|
|
