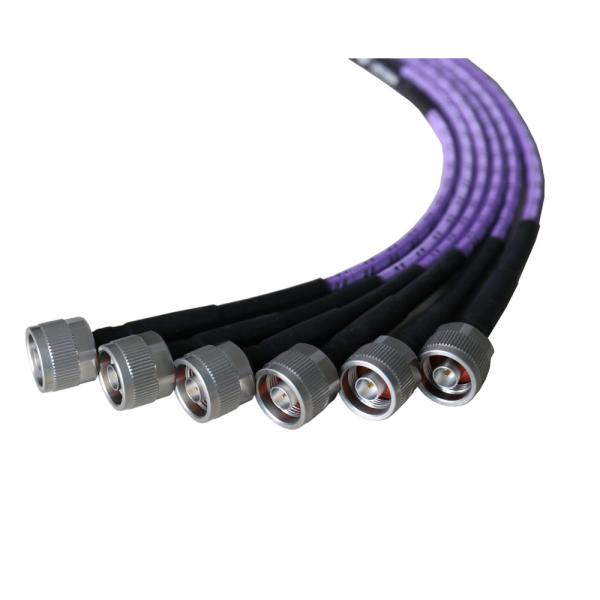

VN280 40G High Phase Stability Flexible Alternate to semi-rigid cable
Flexible, Alternate to semi-rigid cable
| Features: | Applications: |
| * Phase Stability | * Phased-array Radar |
| * Low PIM | * Interconnection in and between equipment |
Electrical
| Frequency: | DC~40GHz | |
| Cut-off Frequency: | 62GHz | |
| Impedance: | 50Ω | |
| Velocity of Propagation: | 70% | |
| Shielding Effectiveness: | 90dB min. | |
| Voltage Withstand: | 500V DC |
| No. | Name | Size (mm) | Material |
| 1 | Inner Conductor | 0.53 | Silver-plated copper |
| 2 | Dielectric | 1.63 | PTFE |
| 3 | Inner Shield | 1.83 | Silver-plated copper tape |
| 4 | Outer Shield | 2.18 | Silver-plated copper braid |
| 5 | Jacket | 2.65 | FEP |
Mechanical
| Bend Radius (installation): | 13.0mm | |
| Bend Radius (repeated): | 26.0mm | |
| Weight: | 22g/m |
Attenuation & Power Handling
| Frequency (GHz) | 0.3 | 0.5 | 1 | 2.4 | 3 | 6 | 8 | 10 | 12.4 | 18 | 26.5 | |
| Attenuation*1 (dB/100m) | 19.9 | 26.2 | 38.2 | 62.5 | 71.1 | 107.5 | 128.3 | 147.6 | 169.4 | 216.1 | 280.6 | |
| Average Power*2 (W) | 512 | 423 | 290 | 177 | 156 | 103 | 86 | 75 | 65 | 51 | 39 |
Environmental
| Temperature: | -55~+125℃ |
Connector naming rules:
2 - 2.4mm (40GHz, VSWR 1.35)
K - 2.92mm (40GHz, VSWR 1.35)
P - SMP (26.5GHz, VSWR 1.3)
A - SSMA (26.5GHz, VSWR 1.3)
S - SMA (26.5GHz, VSWR 1.3)
G - Mini-SMP (mateable with GPPO & SSMP, 18GHz, VSWR 1.3)
N - N (18GHz, VSWR 1.25)
X - MMCX (6GHz, VSWR 1.3)
M - MCX (6GHz, VSWR 1.3)
B - BNC (4GHz, VSWR 1.4)
D - SMB (4GHz, VSWR 1.25)
Female Connector - Add‘F’after connector name
Right Angle - Add‘R’after connector name (VSWR increase 0.1)
|
|
