| Brand Name : | Vinncom |
| Model Number : | VN-PD-2.4G-OS2 |
| Certification : | RoHS/ISO9000 |
| Price : | negotiation |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 50pcs per day |
| Delivery Time : | 2-4weeks |

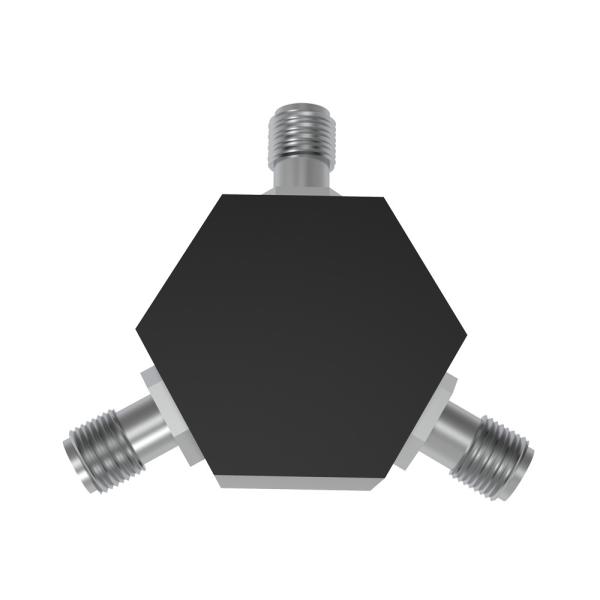

DC-2.4G 2 Way SMA Female Connector Resistive Power Divider
Power splitters used in rf and microwave circuit as a power allocation, and satellite radar is widely used in mobile communication field.Ultra-wideband domains such as electronic countermeasures, test and measurement. Our microwave has strong research and development production capacity, production of power splitters has good frequency characteristic, stable performance, high precision, large power and high applicability, installation simple 1 art and so on. My company has a strong ability of design and test of the products have special requirements can all provide customized production.
Product features
DC - 2.4 GHZ, wide bandwidth Excellent consistency of amplitude and phase standard working temperature and -35 ℃ to + 75 ℃
can design and produce according to customer requirements
Mainly used mobile communications satellite radar Electronic counter measures Ultra-wideband field test and measurement, etc
| Part Number | VN-PD-2.4G-OS2 |
| Operating Frequency ( GHz ) | DC-2.4G |
Impedance( Ohm ) | 50 |
VSWR(Input Port) | ≤1.20 |
VSWR(Output Port) | ≤1.20 |
| Insertion loss | ≤6±0.5 |
| Average Power (Watt max.) | 2W |
Isolation(dB) | ≥6 |
Amplitude Balance(dB) | ±0.5 |
Operating Temperature( ℃ ) | -35 ~ + 75c |
Interface | SMA Female |
Dimensions(mm,L×W×H,excl connector) | 24.2*28*13.5 |
Dimension Tolerance(mm) | ±0.5 |
Mounting | 3-M2.5, depth 5mm |
|
|
